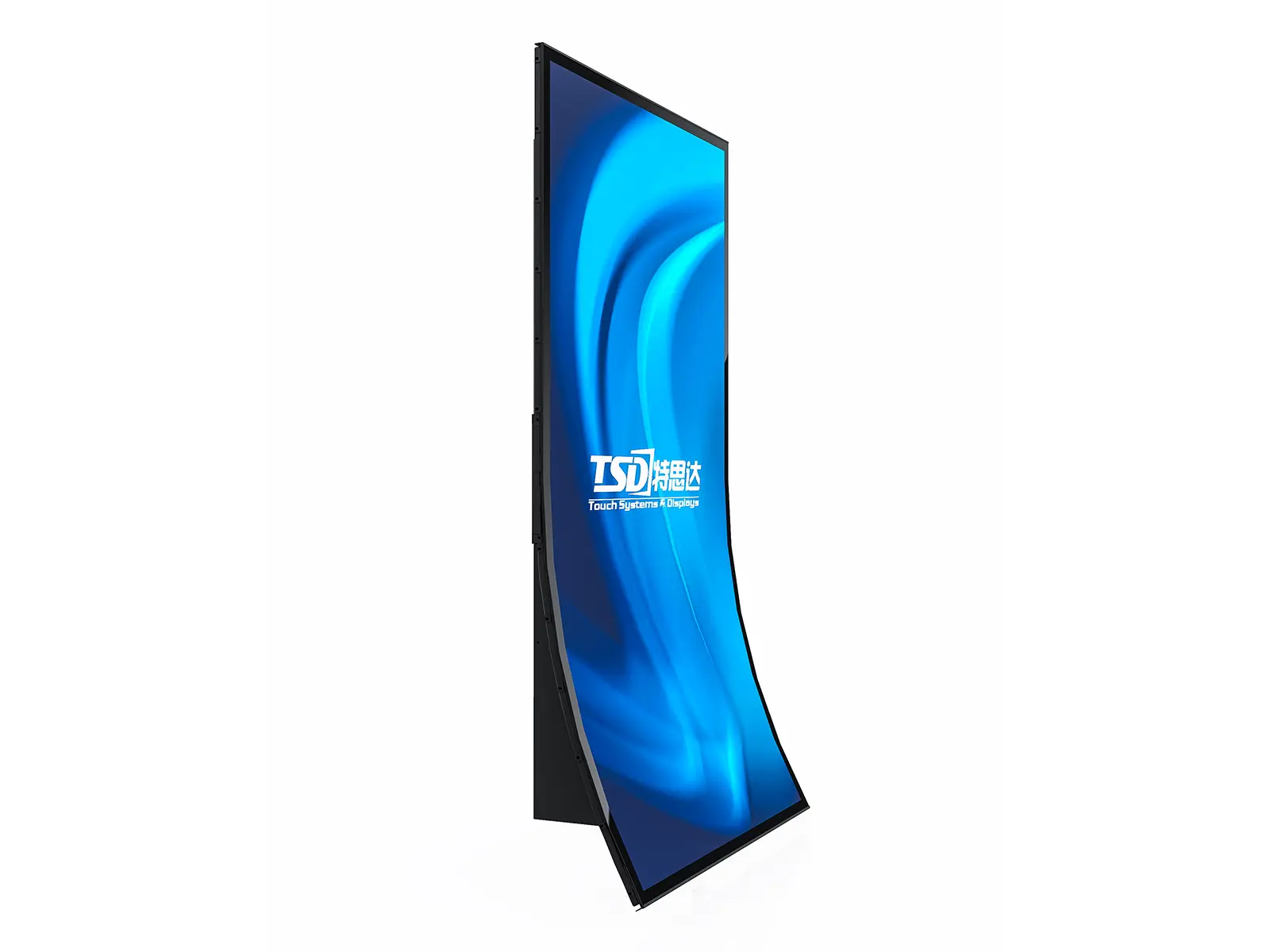

Gaming monitor 55″ J-Curved Display optional with Addressable LEDs and Multitouch PCT

The Gaming 55'' J-Curved Monitor represents the pinnacle of immersive display technology, expertly engineered for high-stakes interactive environments. Its profound J-curved design wraps around the user's field of vision, creating a deeply engaging and captivating experience that is both unique and motivating. At its core is a stunning 4K UHD (3840 x 2160) industrial-grade TFT LCD panel, delivering exceptional clarity, vibrant colors (100% sRGB), and high brightness (>500 cd/m²). It features advanced Projected Capacitive (PCT/PCAP) multitouch technology, ensuring highly responsive and accurate user interaction. Versatility is key with multiple input options (HDMI/DisplayPort) and an OSD menu for easy control. A standout feature is the front and side-facing addressable LED light bars, controllable via an optional Arduino or external driver, for dynamic visual effects. Housed in a closed frame designed for seamless OEM and system integration, this monitor combines superior performance, durability, and modern aesthetics, making it a premium solution for the most demanding applications.

    Gaming 55.0''J- Monitor Specification

    TSD touch monitor are the most economic touch solutions which designed and developed for OEM and system intergration and widely used in retail, self- service, gaming and entertainment applications.

    Established in 2006, TSD technology is a leading touch solution provider in kun- shan, China. Products include PCAP and SAW touch screen,open frame touch monitor, desktop touch monitor and All-in-one touch computer.We concentrate on desig- ning and manufacturing reliable, durable and cost competitive products.

    As an outstanding china touchscreen rovider, we have experienced electronic engineers and echnical experts of the industry who are etermined to lead the touch screen industry into a new era of information technology. We have been granted ISO9001, CE, FCC, Rohs etc. certifications.

    15

    Record Of Revisions

    Version and Date

    Page

    Old Description

    New Description

    Remark

    A0 2025/06/17

    ALL

    First Edition For Customer

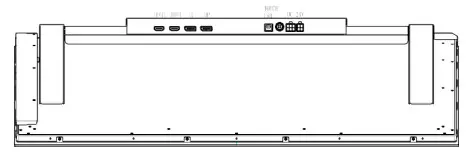

    Product Drawing

    55J-155J-255J-3

    Technical Parameters

    Display specification

    Module size

    1136.30(H) x 666.00(V) mm

    Display area

    1209.60mm(W) x 680.40mm(H)

    Number of pixels

    3840 x 2160

    Color gamut

    100%sRGB

    Colors

    1.07B

    Luminance

    >500 cd/m2

    Contrast ratio(typical)

    2000:1

    Response time(typical)

    10 ms

    Viewing angle(typical)

    R/L:89/89 (typ) U/D:89/89 (typ)

    Touch Specifications

    Touch

    Optional

    Bonding Mode

    Air Bonging

    Interface signals

    HDMI/DP

    Surface treatment

    AG、AR、AF Optional

    Other Specifications

    Power supply

    DC: 24V

    Life time

    50,000 hours

    Power consumption

    160W+40W (typ.)

    Dimensions

    722.30mm*1224.67mm

    Weight

    40.0kg

    Temperature

    Operating: 0o C ~ 50o C

    Storage: -20o C ~ 60o C
