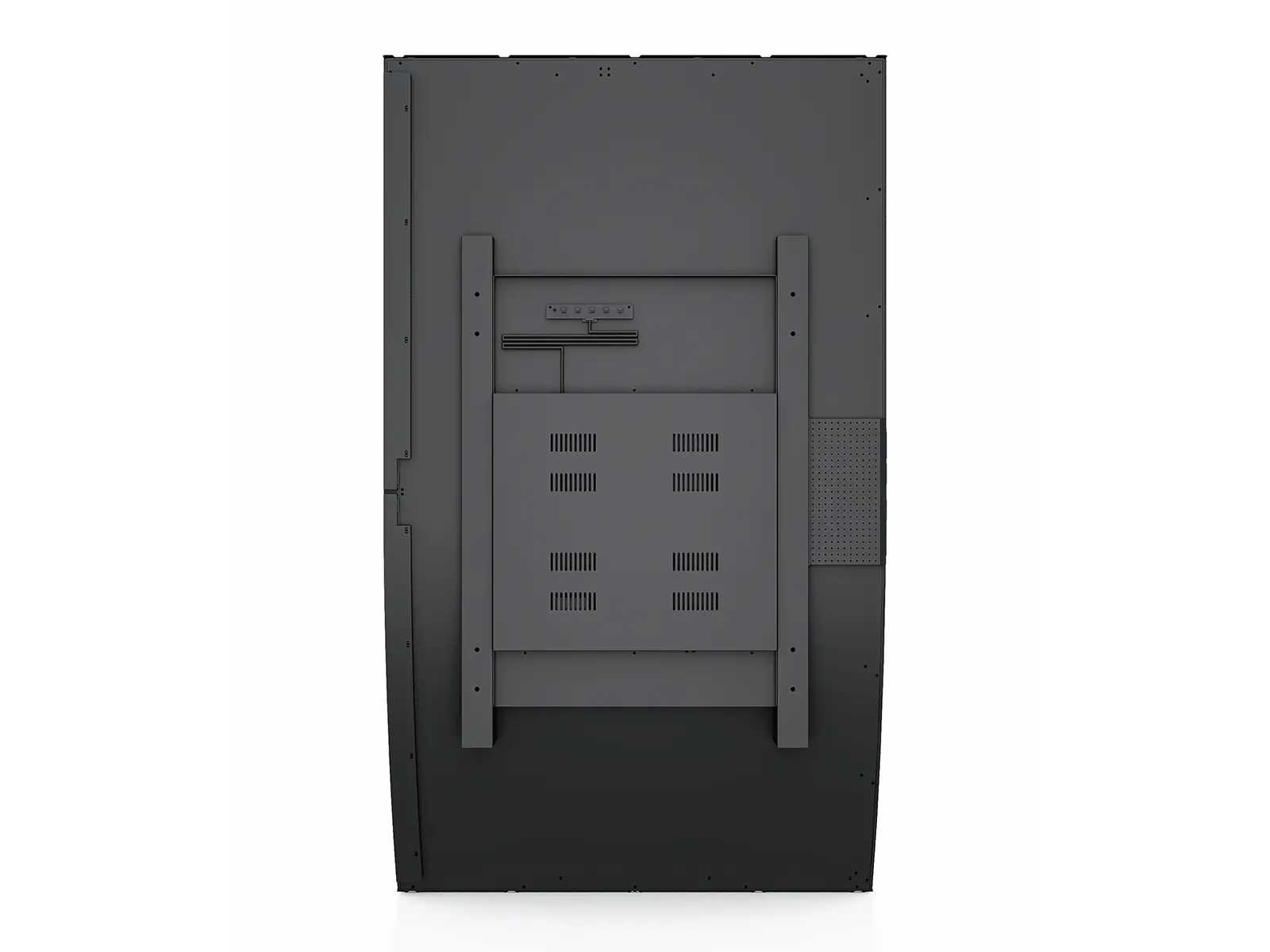

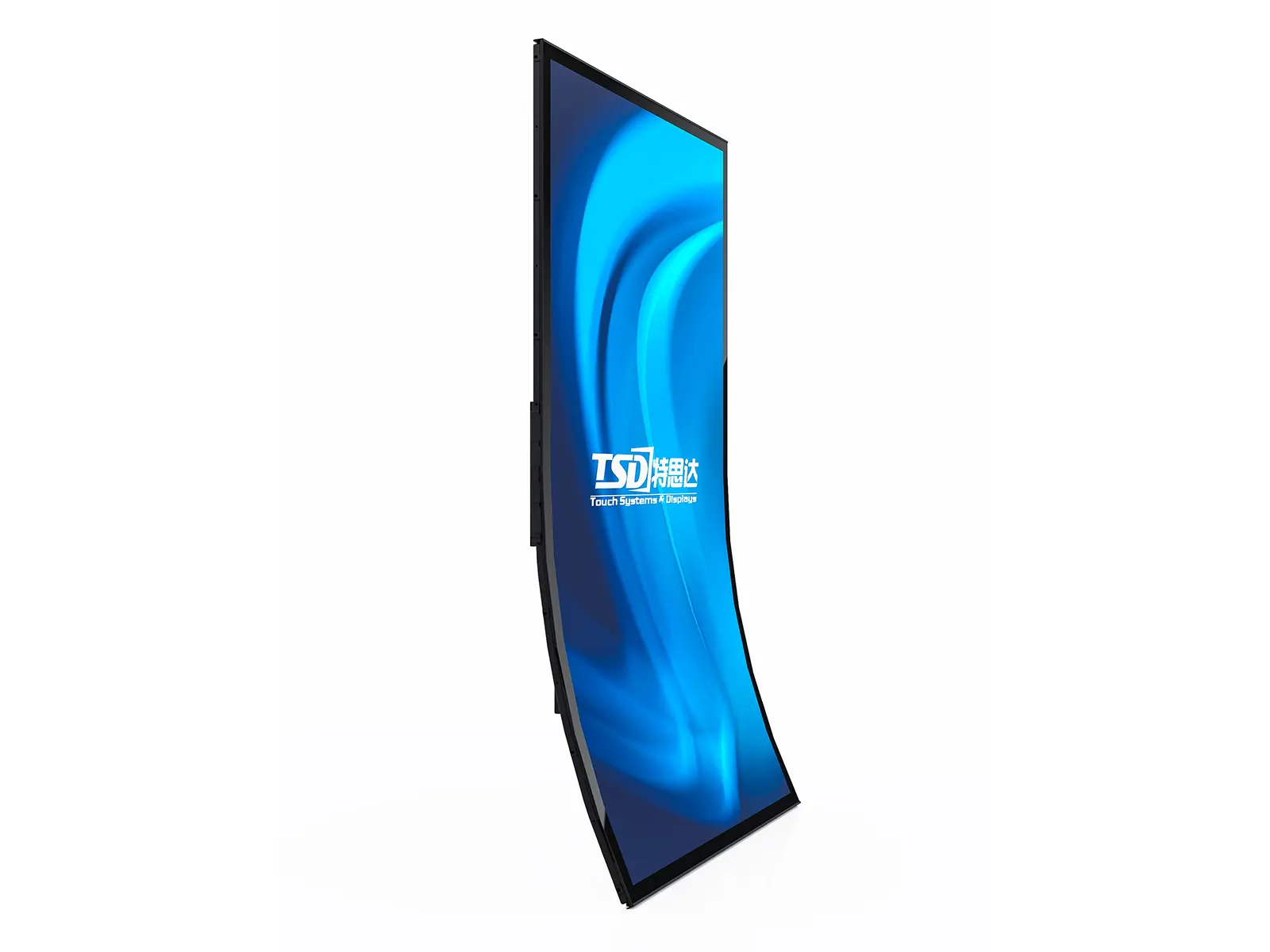

Gaming monitor 49″ J-Curved Display optional with Addressable LEDs and Multitouch PCT

Introducing the Gaming 49'' J-Curved Monitor, a premium display solution engineered to deliver an unparalleled immersive experience. Its signature J-curved shape is not only visually striking but also strategically designed to draw users into the content, enhancing interaction and engagement. The monitor boasts a stunning 4K Ultra HD resolution (3840 x 2160), ensuring crystal-clear imagery with vibrant colors supported by a 100% sRGB color gamut and a high brightness level of over 500 cd/m². Housed in a versatile closed-frame design, it is perfectly suited for seamless integration into a wide array of environments and systems. It features a highly responsive Projected Capacitive (PCAP) touch technology, powered and assured by TSD's own expertise, guaranteeing durability and precision. With comprehensive certifications including ISO9001, CE, FCC, and Rohs, this monitor is a reliable, high-performance choice for demanding applications.

    Gaming 49.0''J- Monitor Specification

    TSD touch monitor are the most economic touch solutions which designed and developed for OEM and system intergration and widely used in retail, self- service, gaming and entertainment applications.

    Established in 2006, TSD technology is a leading touch solution provider in kun- shan, China. Products include PCAP and SAW touch screen,open frame touch monitor, desktop touch monitor and All-in-one touch computer.We concentrate on desig- ning and manufacturing reliable, durable and cost competitive products.

    As an outstanding china touchscreen rovider, we have experienced electronic engineers and echnical experts of the industry who are etermined to lead the touch screen industry into a new era of information technology. We have been granted ISO9001, CE, FCC, Rohs etc. certifications.

    15

    Record Of Revisions

    Version and Date

    Page

    Old Description

    New Description

    Remark

    A0 2025/06/16

    ALL

    First Edition For Customer

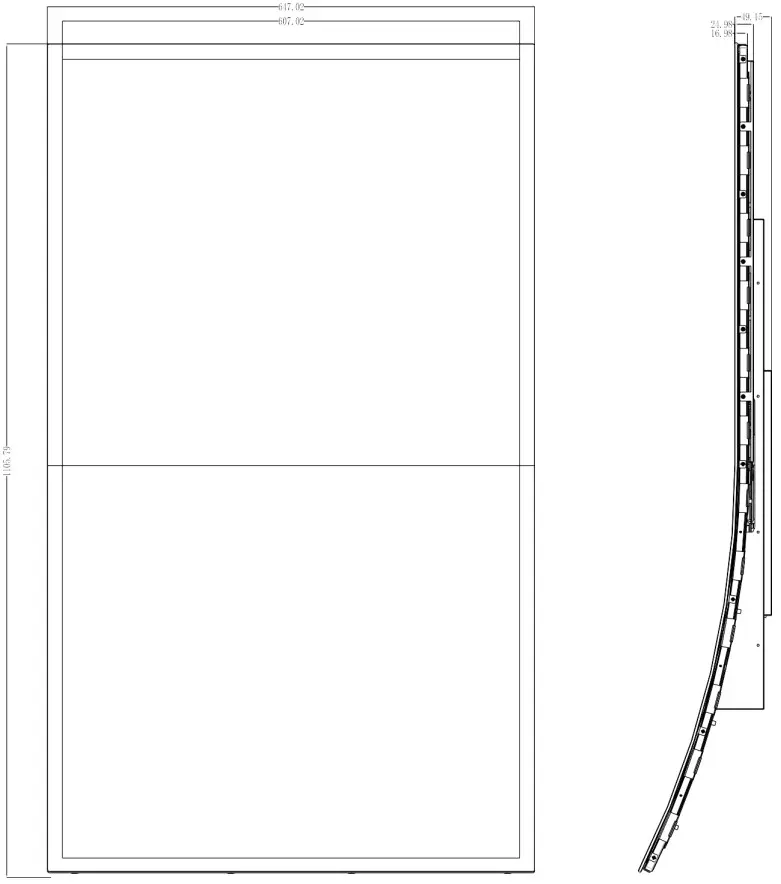

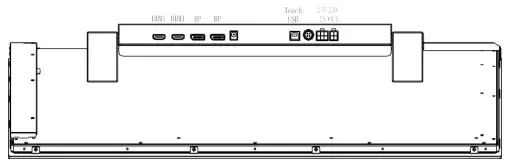

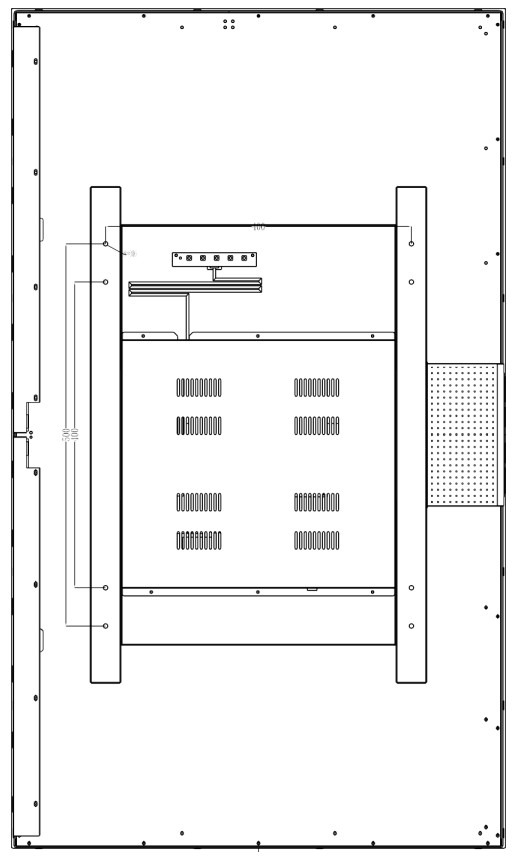

    Product Drawing

    49J-149J-249J-3

    Technical Parameters

    Display specification

    Module size

    1136.30(H) x 666.00(V) mm

    Display area

    1073.78mm(W) x 604.00mm(H)

    Number of pixels

    3840 x 2160

    Color gamut

    100%sRGB

    Colors

    1.07B

    Luminance

    >500 cd/m2

    Contrast ratio(typical)

    2000:1

    Response time(typical)

    10 ms

    Viewing angle(typical)

    R/L:89/89 (typ) U/D:89/89 (typ)

    Touch Specifications

    Touch

    Optional

    Bonding Mode

    Air Bonging

    Interface signals

    HDMI/DP

    Surface treatment

    AG、AR、AF Optional

    Other Specifications

    Power supply

    DC: 24V

    Life time

    50,000 hours

    Power consumption

    125W+35W (typ.)

    Dimensions

    647.02mm*1105.79mm*49.15mm

    Weight

    32.0kg

    Temperature

    Operating: 0o C ~ 50o C

    Storage: -20o C ~ 60o C
