01

Gaming monitor 49″ C-Curved Display optional with Addressable LEDs and Multitouch PCT

The 49'' C-Curved Monitor from TSD is a sophisticated and economically efficient touch solution engineered for seamless OEM and system integration. Its elegant C-curved design provides a wide, immersive viewing experience that enhances user engagement across various interactive applications. Manufactured by TSD's experienced production team with full local support and short lead times, this display combines advanced technology with reliable performance.

    Contact us
    product details

    Gaming 49.0''C- Monitor Specification

    TSD touch monitor are the most economic touch solutions which designed and developed for OEM and system intergration and widely used in retail, self- service, gaming and entertainment applications.

    Established in 2006, TSD technology is a leading touch solution provider in kun- shan, China. Products include PCAP and SAW touch screen,open frame touch monitor, desktop touch monitor and All-in-one touch computer.We concentrate on desig- ning and manufacturing reliable, durable and cost competitive products.

    As an outstanding china touchscreen rovider, we have experienced electronic engineers and echnical experts of the industry who are etermined to lead the touch screen industry into a new era of information technology. We have been granted ISO9001, CE, FCC, Rohs etc. certifications.

    15

    Record Of Revisions

    Version and Date

    Page

    Old Description

    New Description

    Remark

    0 2025/06/17

    ALL

    First Edition For Customer

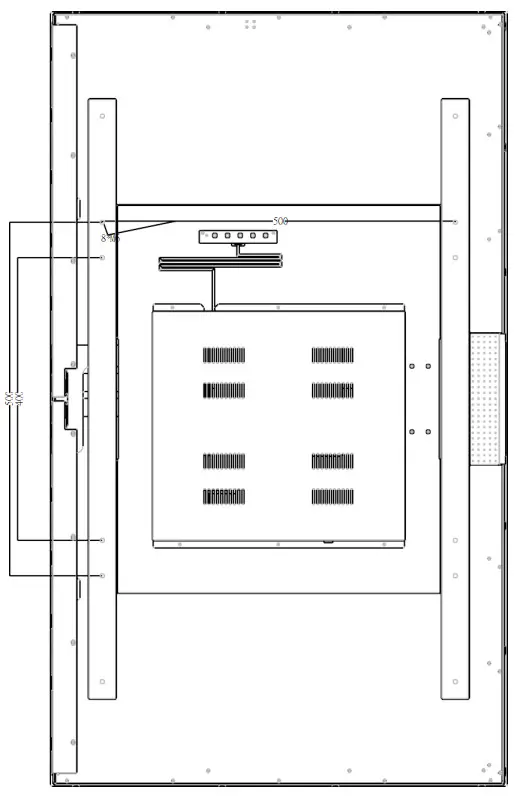

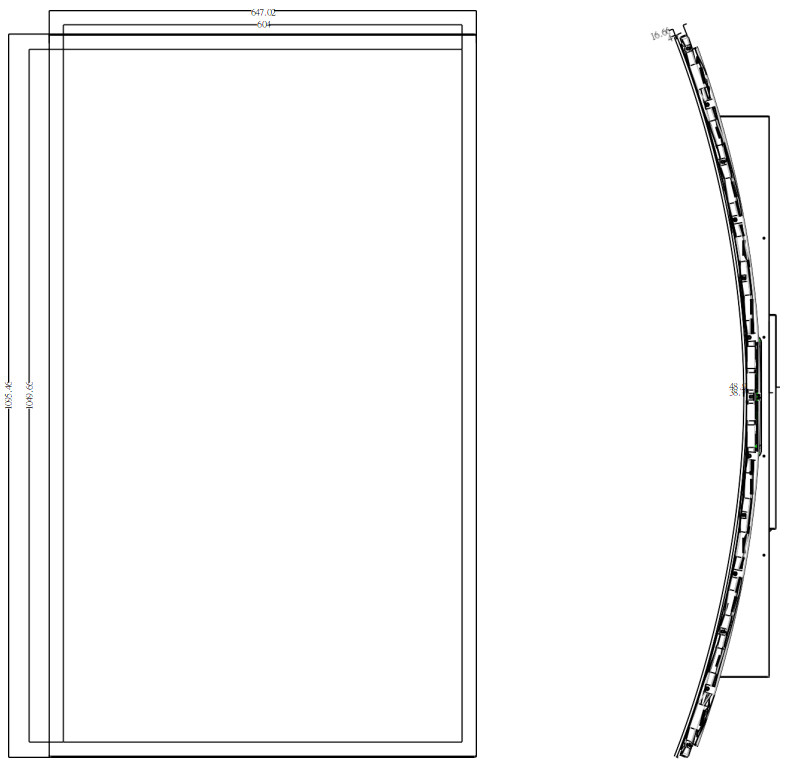

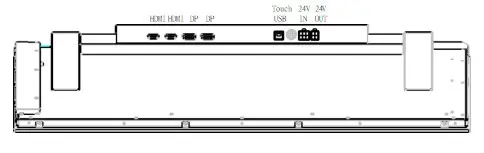

    Product Drawing

    49C-149C-249C-3

    Technical Parameters

    Display specification

    Module size

    1122.01(H) x 666.00(V) mm

    Display area

    1073.78mm(W) x 604.00mm(H)

    Number of pixels

    3840 x 2160

    Color gamut

    100%sRGB

    Colors

    1.07B

    Luminance

    ＞500 cd/m2

    Contrast ratio(typical)

    2000:1

    Response time(typical)

    10 ms

    Viewing angle(typical)

    R/L:89/89 (typ) U/D:89/89 (typ)

    Touch Specifications

    Touch

    Optional

    Bonding Mode

    Air Bonging

    Interface signals

    HDMI/DP

    Surface treatment

    AG、AR、AF Optional

    Other Specifications

    Power supply

    DC: 24V

    Life time

    50,000 hours

    Power consumption

    125W+35W (typ.)

    Dimensions

    1095.46mm*647.02mm

    Weight

    32.0kg

    Temperature

    Operating: 0o C ~ 50o C

    Storage: -20o C ~ 60o C
    490C-4

    Key Features

    01

    Immersive Curved Design: Features a sleek C-curve that provides a wide, engaging field of view, perfect for drawing users into the content.

    Crystal-Clear Visuals: Equipped with a 49-inch 4K UHD (3840 x 2160) industrial TFT LCD panel, delivering stunning detail with 100% sRGB color gamut, high brightness (>500 cd/m²), and a 4000:1 contrast ratio.

    Advanced Interactive Technology: Utilizes responsive Projected Capacitive (PCT/PCAP) multitouch technology (optional) for smooth and precise user interaction.

    Dynamic Lighting System: Optional Includes front and side-facing addressable LED light bars, controllable via an optional Arduino board or external driver, for adding customizable visual effects and alerts.

    Versatile Connectivity: Offers multiple signal input options, including HDMI and DisplayPort, ensuring compatibility with a wide range of systems.

    User-Friendly Control: An intuitive On-Screen Display (OSD) interface allows for easy adjustment of settings.

    Robust and Reliable: Built with a high-quality industrial panel for durability, backed by certifications including ISO9001, CE, FCC, and Rohs. Operates on 24V DC.

    490C-5

    Application Scenarios

    01

    1 Immersive Casino Gaming Machines: This 49" C-curved monitor is ideally suited for modern slot machines and electronic gaming terminals on the casino floor. The gently curving screen creates a captivating and intimate viewing experience that surrounds the player, enhancing focus on the game. The brilliant 4K resolution ensures that game graphics, animations, and jackpot messages are displayed with breathtaking clarity and vibrant colors, increasing player excitement. The responsive PCT touch layer allows for intuitive interaction with bonus games and menus. Furthermore, the integrated LED lighting can be programmed to flash and pulse with wins, creating a dynamic and attention-grabbing spectacle that attracts other players, thereby driving floor traffic and increasing engagement.

    2 High-Traffic Interactive Kiosks and Wayfinding: Perfect for deployment in airports, shopping malls, and corporate buildings as a self-service information point or digital directory. The C-curve design is not only aesthetically modern but also functional, offering a wider comfortable viewing angle for multiple users simultaneously and making the screen more accessible. The high-brightness display ensures content remains clearly visible even under bright ambient lighting. The robust touch capability can withstand countless daily interactions from the public, providing reliable service for browsing maps, directories, or promotional content. The programmable LED strips can serve as a subtle status indicator or be used to create attractive visual themes that align with the brand identity of the venue, enhancing the overall user experience.
