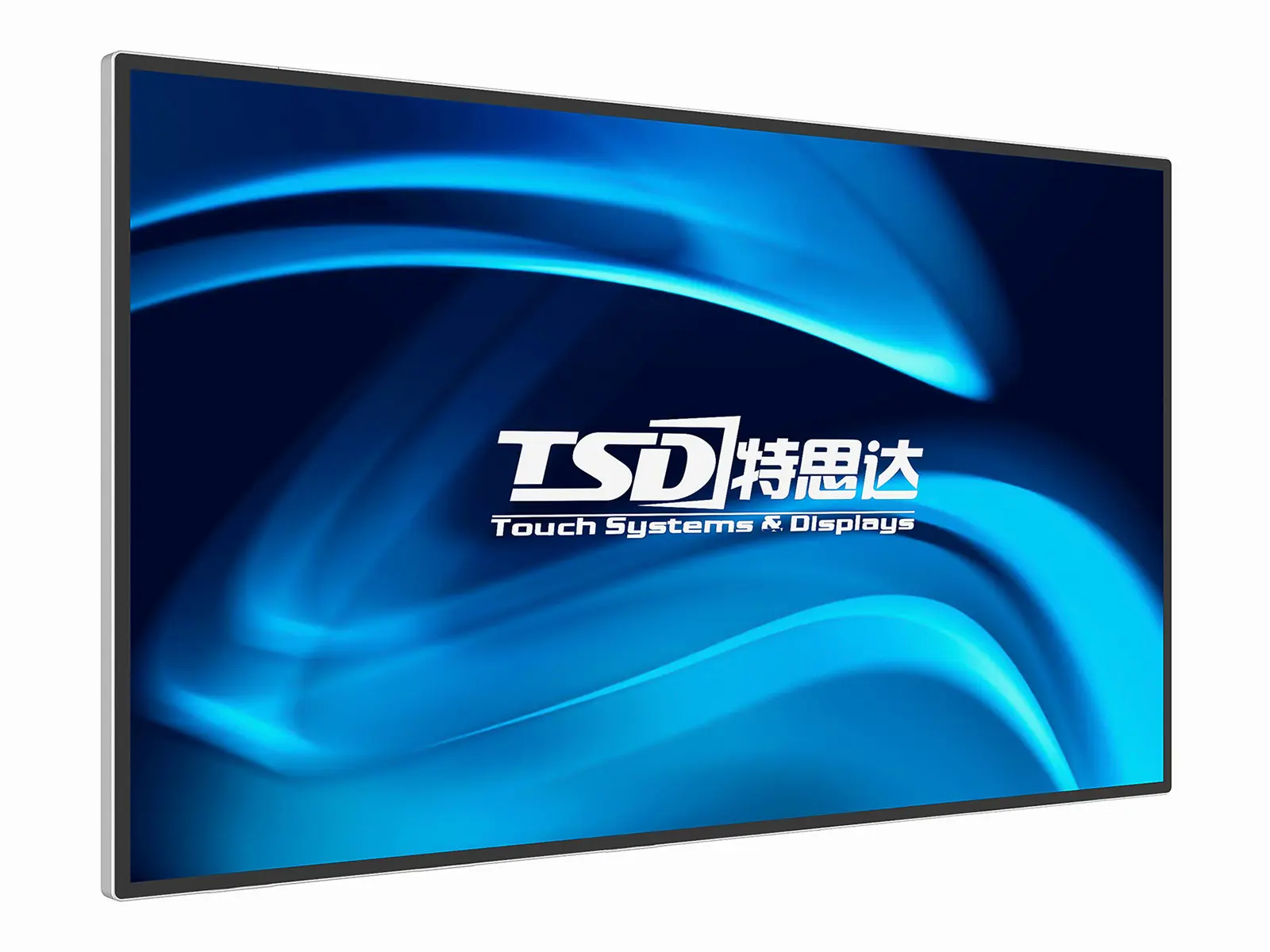

43-inch 4K UHD Zero Bezel Touch Screen Monitor

Introducing the 43-inch 4K UHD Zero Bezel Touch Monitor, delivering stunning 3840×2160 resolution with exceptional clarity and detail. Featuring 10-point projective capacitive touch, 2mm strengthened glass, and IP65 front protection, it's built for high-performance applications. Ideal for digital signage, interactive kiosks, control rooms, and collaborative environments. With versatile connectivity including HDMI, DVI, and VGA, it seamlessly integrates into various systems. Designed for 24/7 operation with reliable performance in diverse environments.

product details

43" Touch Monitor

TSD touch monitor are the most econo- mic touch solutions which designed and developed for OEM and system intergrati- on and widely used in retail, self- service, gaming and entertainment applications.

Established in 2006, TSD technology is a leading touch solution provider in kun- shan, China. Products include PCAP and SAW touch screen, open frame touch mon- itor, desktop touch monitor and All-in-one touch computer.We concentrate on desig- ning and manufacturing reliable, durable and cost competitive products.

As an outstanding china touchscreen provider, we have experienced electro- nic engineers and technical experts of the industry who are determined to lead the touch screen industry into a new era of information technology. We have been granted ISO9001, CE, FCC, Rohs etc. certifications.

Key structure
Support multi touch function A finger or touch pen
USB touch interface, plug and play VGA/DVI/HDMI display interface Toughened glass capacitive screen 16:9 wide display screen
Free optional accessories

Application
Finance Gaming Transportation Advertisement Trade
Post and telecommunications Tax revenue
Insurance

Version:A0

Date:
2022.06.20

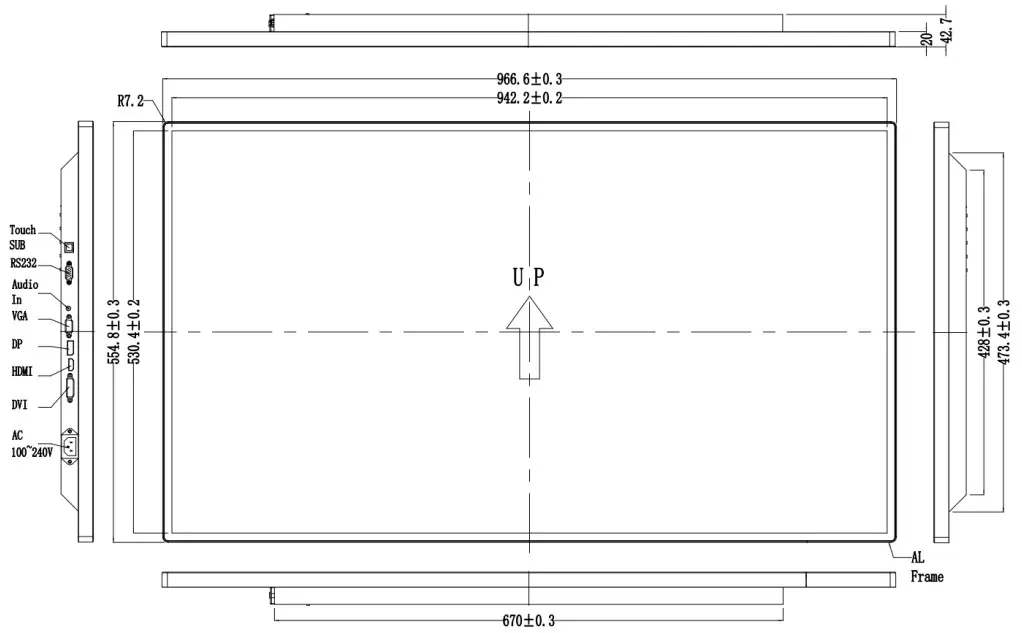

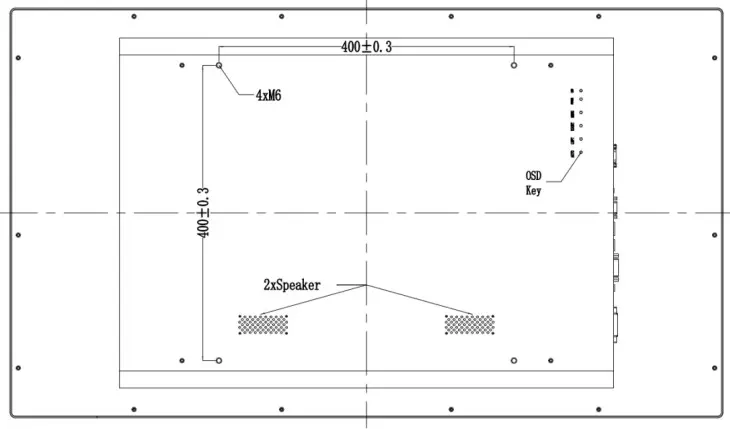

Product Drawing

Technical Parameters

Display specification
Model	ITL430
Display size	16：9
Active area	953.0 (H)mm x 543.0 (V) mm
Native resolution	3840x2160@60Hz
Pixel pitch	0.2451(mm) x 0.2451(mm)
Colors	16.7M
Brightness(typical)	LED panel: 250 nits
Contrast ratio(typical)	1200:1
Response time(typical)	18 ms
Viewing angle(typical)	R/L:89/89 (typ) U/D:89/89 (typ)
Input interface	VGA 、DVI、 HDMI
OSD	Contrast, Brightness, Horizontal vertical image size and position, Color temperature,The language selection, RESET, Exit OSD.
Touch Specifications
Touch screen	43 " PCAP
Touch point	10 points
Touch accuracy	2mm
Minimum touch body	Ø7mm
Touch activation force	10g
Touch response time	10ms (typ)
IC	ILITek ILI2323
Material	2 mm strengthen glass
Surface durability	Mohs' 7H
Light transmission	86%
Touch resolution	4096*4096
Input method	Finger、Touch pen
Expected life performance	50,000,000 times

Other Specifications
Power supply	AC 100V-240V)
IP(touch screen with frame)	IP 65
MTBF	50,000h
Dimensions	Product: 966.6mm42.7mm554.8mm
	Package:1090mm170mm680mm
Weight	Product: 28kg
	Package: 34kg
Temperature	Operating: 0o C ~ 40o C
	Storage: -20o C ~ 60o C
Humidity	Operationg: 20%~80%
	Storage: 10%~90%
Accessories(standard)	Signal Cables	Connector	USBA-USBB
		Length
		Color
	HDMI Cord	Connector	HDMI
		Length
		Color	Black
	Power Cord	Type

		Color	Black

The 43-inch 4K UHD Zero Bezel Touch Monitor (Model: ITL430) represents the pinnacle of large-format interactive display technology. Combining ultra-high definition visuals with robust touch functionality, this monitor is engineered for demanding commercial, and public applications where exceptional image quality and reliability are paramount.

Ultra-High Definition Visual Excellence:
With 4K UHD resolution (3840×2160) and 1200:1 contrast ratio, this monitor delivers breathtakingly sharp and detailed images, making it perfect for displaying high-resolution graphics, detailed schematics, and immersive multimedia content. The wide 178° viewing angles ensure consistent image quality from any perspective.

Advanced Touch Technology:
The 10-point projective capacitive touch system provides responsive and accurate interaction, supporting both finger and stylus input. The 2mm strengthened glass with Mohs' 7H hardness ensures exceptional durability against scratches, impacts, and daily wear, capable of withstanding up to 50 million touches.

Rugged Construction for Demanding Environments:
Featuring IP65 front-panel protection against dust and water, this monitor is ideal for challenging environments including public spaces, and outdoor applications. It operates reliably in temperatures from 0°C to 40°C and supports continuous 24/7 operation for mission-critical applications.

Comprehensive Application Versatility:
- Digital Signage: High-impact advertising displays, informational screens, and wayfinding systems
- Control Rooms: Monitoring and visualization of complex data and operations
- Retail: Interactive product catalogs, self-service kiosks, and promotional displays
- Corporate: Collaborative workspaces, conference rooms, and presentation systems
- Hospitality: Self-check-in stations, menu boards, and information points
- : Human-machine interfaces, process control, and monitoring systems

Reliable Performance and Certification:
With an MTBF of 50,000 hours and international certifications including ISO9001, CE, FCC, and RoHS, this monitor guarantees quality and durability. The included accessories (HDMI cable, power cord, and adapters) ensure quick setup and deployment.
