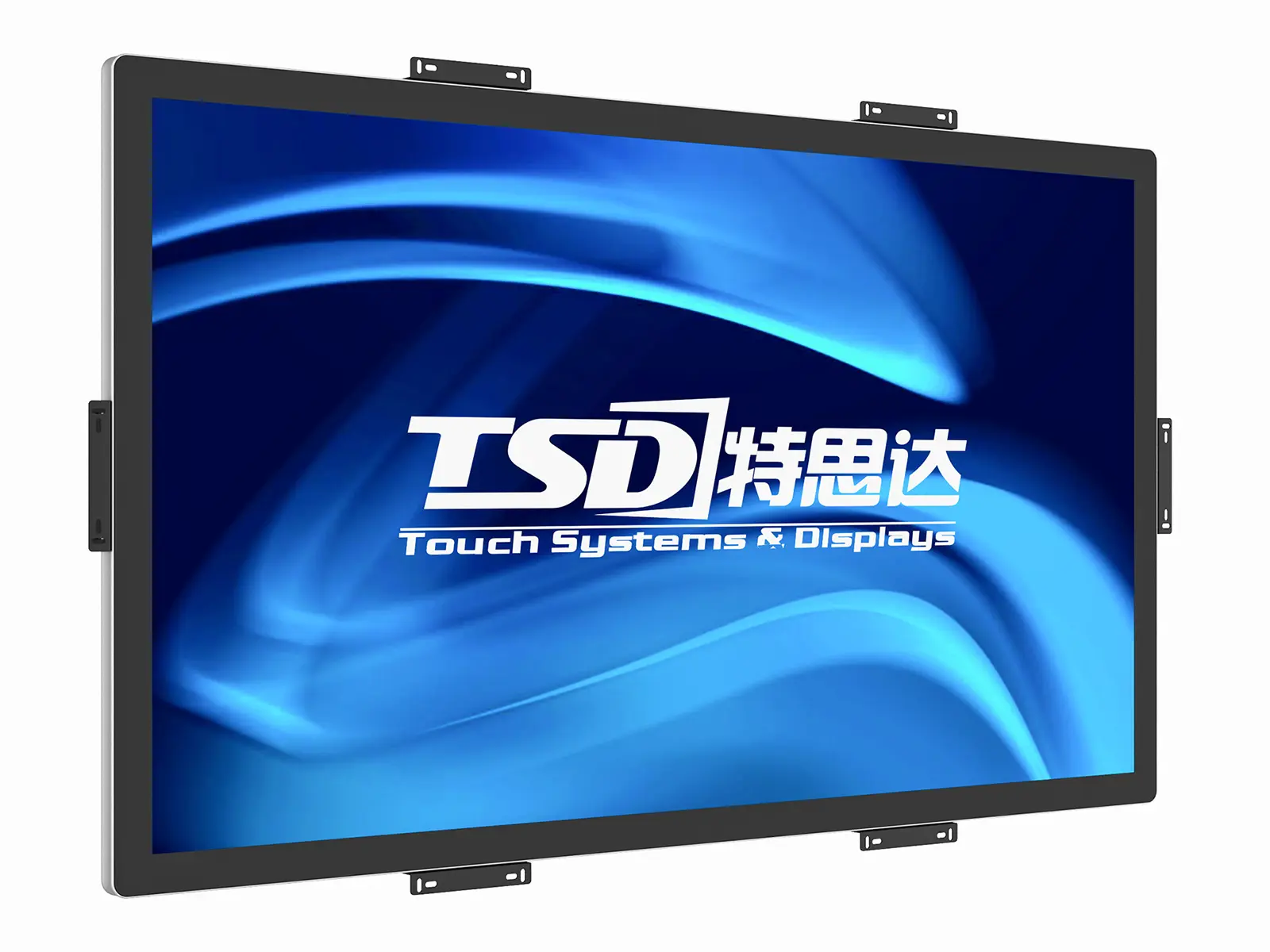

43″ Capacitive Touchscreen Monitor with Aluminum frame
43" Interactive Digital Signage
TSD IDS All-In-One touch computer is for OEM and system integrators, designed with the best cost-effective touch solutions, making TSD touch display products more competitive for retailing, self-service gaming and entertainment applications.
Established in 2006, TSD technology is a leading touch solution provid -er in Kunshan, China. Products including PCAP and SAW touch screen, open frame touch monitor, desktop touch monitor and All-in-one touch computer. We concentrate on designing and manufacturing reliable, durable and cost competitive products. As anoutstanding touchscreen provider, we have experienced electronic engineers and technical experts of the industry who are determined to lead the touch screen industry into a new era of information technology.
We have been granted ISO9001, CE, FCC, Rohs Certifications etc.

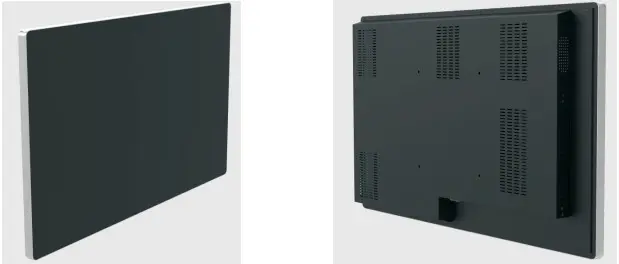

Key structure
Support multi touch function A finger or touch pen
USB touch interface, plug and play Toughened glass capacitive screen 16:9 display screen
Free optional accessories
Application
Finance
Gaming
Transportation
Advertisement
Trade
Post and telecommunications
Tax revenue
Insurance
Version: A0
Date: 2021.05.20

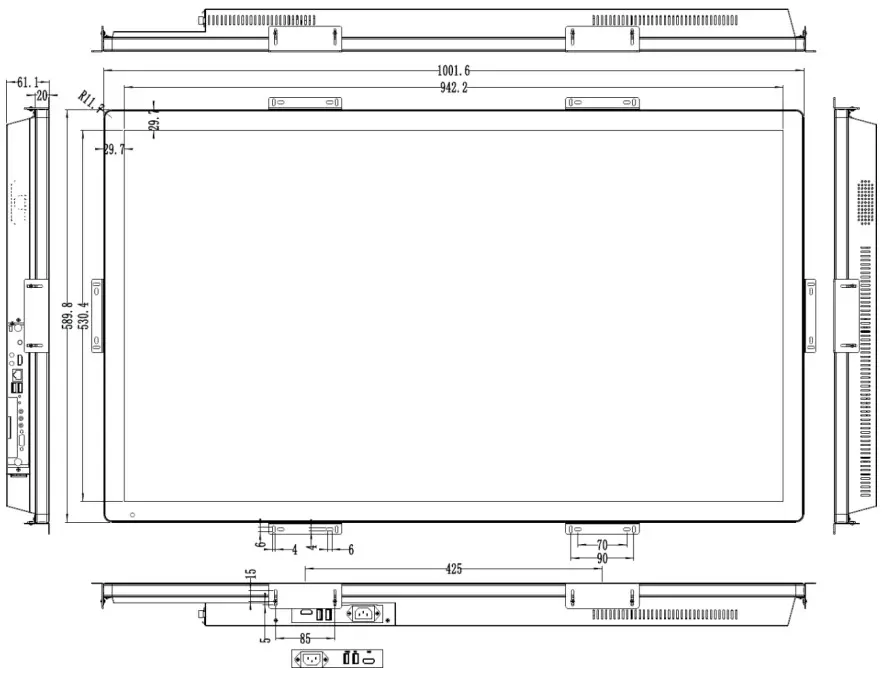

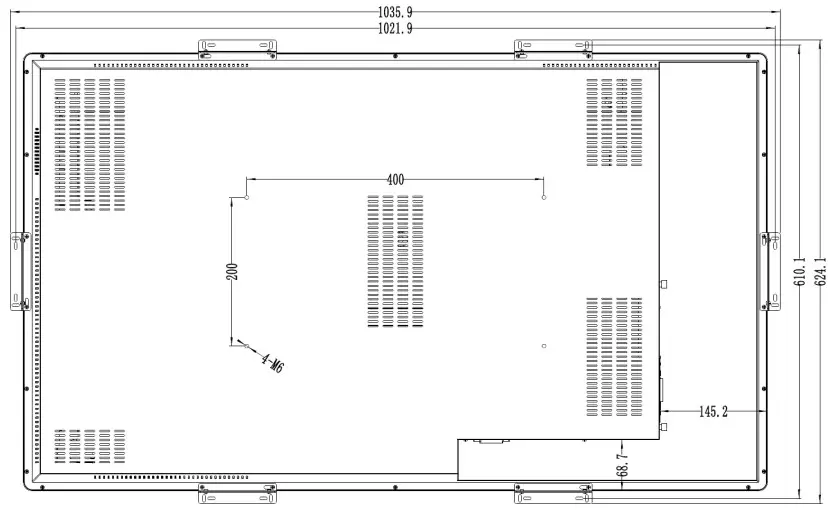

Product Drawing
Technical Parameters
|
Display specification |
|
|
Model |
CBC430 |
|
Display size |
16：9 |
|
Active area |
941.184 (H)mm x 529.416 (V) mm |
|
Native resolution |
3840x2160@60Hz |
|
Pixel pitch |
0.2451(H)(mm) x 0.2451(V)(mm) |
|
Colors |
10bits |
|
Brightness(typical) |
Display: 450 nits |
|
Contrast ratio(typical) |
1000:1 |
|
Response time(typical) |
15 ms |
|
Viewing angle(typical) |
R/L:89/89 (typ) U/D:89/89 (typ) |
|
Touch Specifications |
|
|
Touch screen |
43" PCAP |
|
Touch point |
10 points |
|
Touch accuracy |
2mm |
|
Minimum touch body |
Ø7mm |
|
Touch activation force |
10g |
|
Touch response time |
10ms (typ) |
|
IC |
ILI2322 |
|
Material |
3 mm strengthen glass |
|
Surface durability |
7H AF |
|
Light transmission |
86% |
|
Touch resolution |
4096*4096 |
|
Input method |
Finger、Touch pen |
|
Expected life performance |
50,000,000 times |
|
Other Specifications |
|||
|
Power supply |
AC:220V |
||
|
Rear Panel I/O |
USB2.0*1；TOUCH USB*1；HDMI IN*1 |
||
|
Speaker |
3W *2 |
||
|
MTBF |
50,000h |
||
|
Dimensions |
Product: 1001.6mm*589.8mm*61.1mm |
||
|
Package: 1102mm*690mm*162mm |
|||
|
Weight |
Product: TBD kg |
||
|
Package: TBD kg |
|||
|
Temperature |
Operating: 0o C ~ 40oC |
||
|
Storage: -20o C ~ 60oC |
|||
|
Humidity |
Operating: 20%~80% |
||
|
Storage: 10%~90% |
|||
|
Accessories(standard) |
Power Cables |
Connector |
British Specification Plug |
|
Length |
1.8 m ± 30mm |
||
|
Color |
Black |
||
|
Signal Cables |
Connector |
USBA-USBB |
|
|
Length |
1.5 m ± 30mm |
||
|
Color |
Black |
||
Note: Panel and specifications subject to change without notice.
