01

32″ Capacitive Touchscreen Monitor with Aluminum frame

Unleash immersive interactivity with our 32″ Capacitive Touchscreen Monitor. Its expansive display and crisp 1920x1080 resolution provide a captivating visual experience, while the responsive 10-point multi-touch technology ensures smooth, intuitive control. Connect via HDMI (with optional DP) for a stunning large-format display. For an all-in-one computing solution, simply integrate an OPS module to transform it into a powerful touch PC, ideal for kiosks, digital signage, or collaborative environments.

    Contact us
    product details

    32" Interactive Digital Signage

    TSD IDS All-In-One touch computer is for OEM and system integrators, designed with the best cost-effective touch solutions, making TSD touch display products more competitive for retailing, self-service gaming and entertainment applications.

    Established in 2006, TSD technology is a leading touch solution provid -er in Kunshan, China. Products including PCAP and SAW touch screen, open frame touch monitor, desktop touch monitor and All-in-one touch computer. We concentrate on designing and manufacturing reliable, durable and cost competitive products. As anoutstanding touchscreen provider, we have experienced electronic engineers and technical experts of the industry who are determined to lead the touch screen industry into a new era of information technology.

    We have been granted ISO9001, CE, FCC, Rohs Certifications etc.

    Key structure
    Support multi touch function A finger or touch pen
    USB touch interface, plug and play Toughened glass capacitive screen 16:9 display screen
    Free optional accessories

    Application
    Finance
    Gaming
    Transportation
    Advertisement
    Trade
    Post and telecommunications
    Tax revenue
    Insurance

    Version: A0

    Date: 2021.06.24

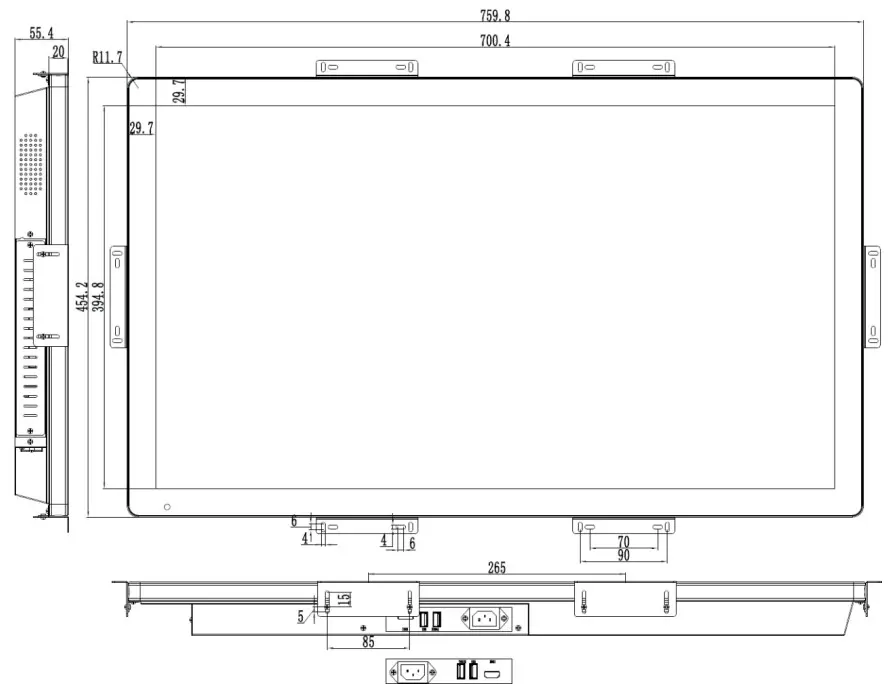

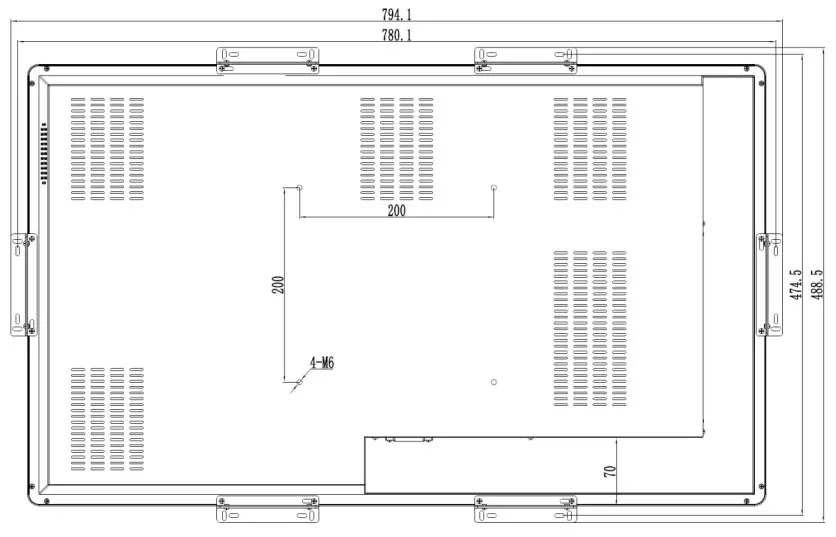

    Product Drawing

    CBC320-with-OPS-4CBC320-with-OPS-5

    Technical Parameters

    Display specification

    Model

    CBC320

    Display size

    16：9

    Active area

    698.4 (H)mm x 392.85 (V) mm

    Native resolution

    1920x1080@60Hz

    Pixel pitch

    0.12125(H)(mm) x 0.36375(V)(mm)

    Colors

    16.7M

    Brightness(typical)

    LED panel: 550 nits ; Display:450nits

    Contrast ratio(typical)

    1200:1

    Response time(typical)

    8 ms

    Viewing angle(typical)

    1. R/L:89/89° U/D:89/89°

    Touch Specifications

    Touch screen

    32" PCAP

    Touch point

    10 points

    Touch accuracy

    2mm

    Minimum touch body

    Ø7mm

    Touch activation force

    10g

    Touch response time

    10ms (typ)

    IC

    ILI2510

    Material

    3 mm strengthen glass

    Surface durability

    7H AF

    Light transmission

    86%

    Touch resolution

    4096*4096

    Input method

    Finger、Touch pen

    Expected life performance

    50,000,000 times

    Other Specifications

    Power supply

    AC:220V

    Rear Panel I/O

    USB2.0*1；TOUCH USB*1；HDMI IN*1

    Speaker

    3W *2

    MTBF

    50,000h

    Dimensions

    Product: 759.8mm*454.2mm*55.4mm

    Package: 860mm*555mm*156mm

    Weight

    Product: 13 kg

    Package: 15 kg

    Temperature

    Operating: 0o C ~ 40oC

    Storage: -20o C ~ 60oC

    Humidity

    Operating: 20%~80%

    Storage: 10%~90%

    Accessories(standard)

    Power Cables

    Connector

    British Specification Plug

    Length

    1.8 m ± 30mm

    Color

    Black

    Signal Cables

    Connector

    USBA-USBB

    Length

    1.5 m ± 30mm

    Color

    Black

    Note: Panel and specifications subject to change without notice.

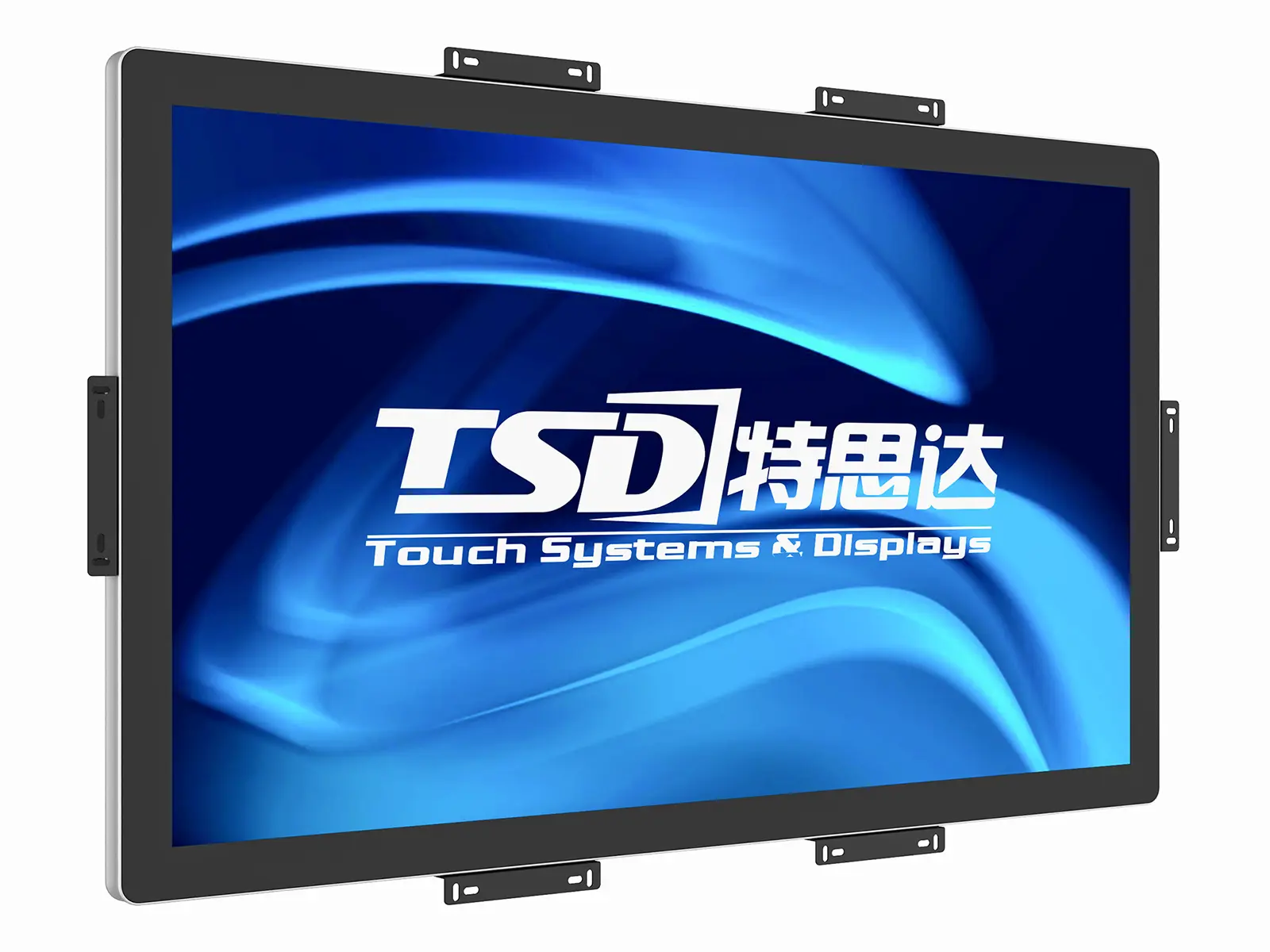

    CBC320-with-OPS-2
    01

    A 32-inch PCAP (Projected Capacitive) touch display combined with an OPS (Open Pluggable Specification) computer offers a highly effective and versatile solution for various markets, with significant advantages over traditional displays and signage.

    In the Retail Market:

    Elevated Customer Experience: The large, vibrant, and highly responsive touch screen creates a "giant tablet" experience, enabling interactive product catalogs, virtual try-ons, and "endless aisle" solutions where customers can browse and order products not physically in stock. This interactivity keeps shoppers engaged and can drive impulse purchases.

    All-in-One and Space-Saving Design: The OPS computer seamlessly integrates into the monitor, eliminating the need for a separate, bulky PC tower and its associated cables. This clean, compact setup is ideal for retail environments where counter and floor space are at a premium, allowing for a more modern and uncluttered aesthetic.

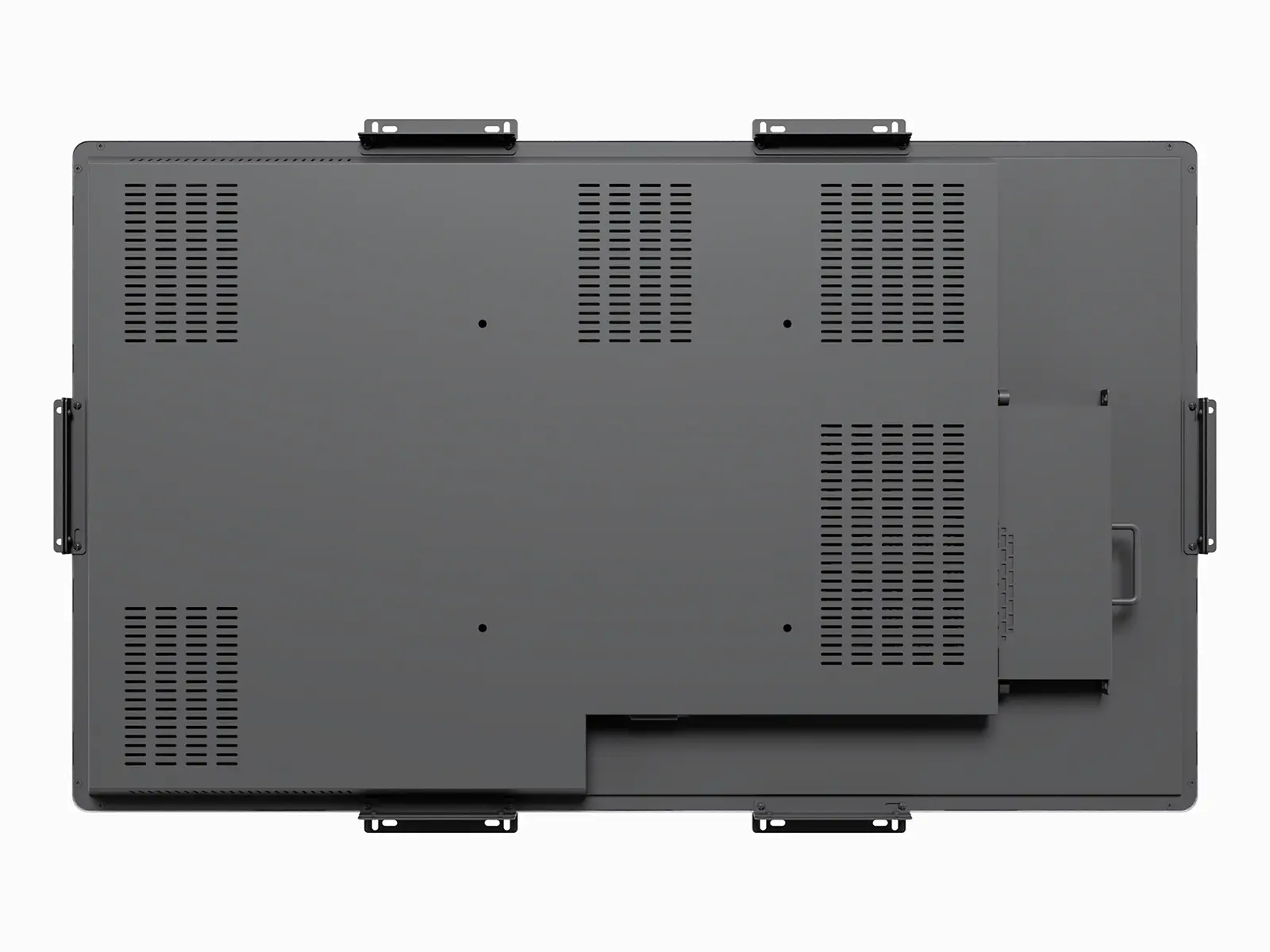

    CBC320-with-OPS-3
    01

    Dynamic and Personalized Content: Unlike static signs, digital signage with a touch screen can display dynamic content, including promotional videos and real-time updates. The touch functionality allows for personalized interactions, such as signing up for loyalty programs or getting customized product recommendations.

    Simplified Maintenance and Upgrades: The OPS standard allows for easy component swapping. If the computing power needs an upgrade, the OPS module can be replaced without having to change the entire display, reducing long-term costs and minimizing downtime.
