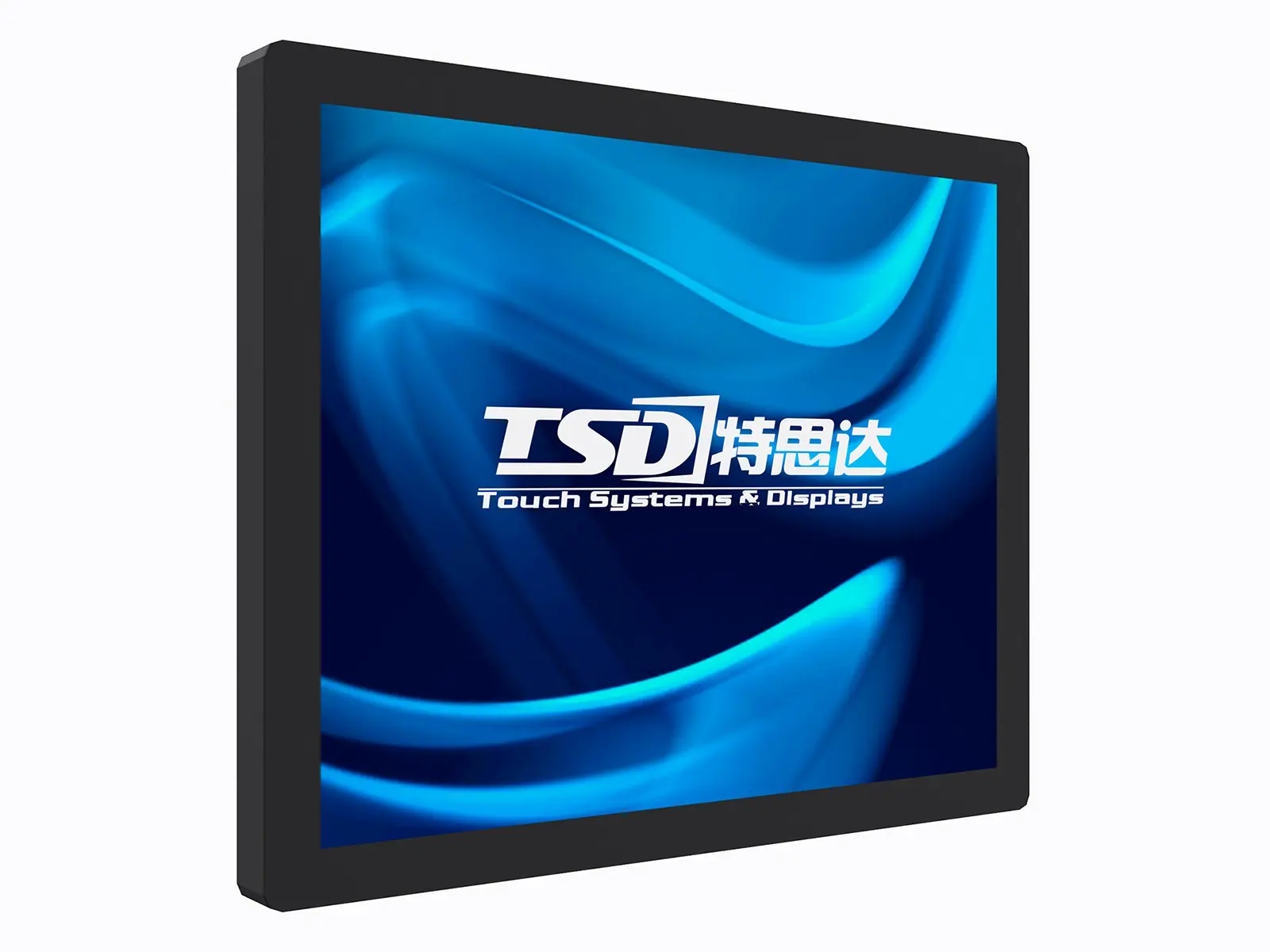

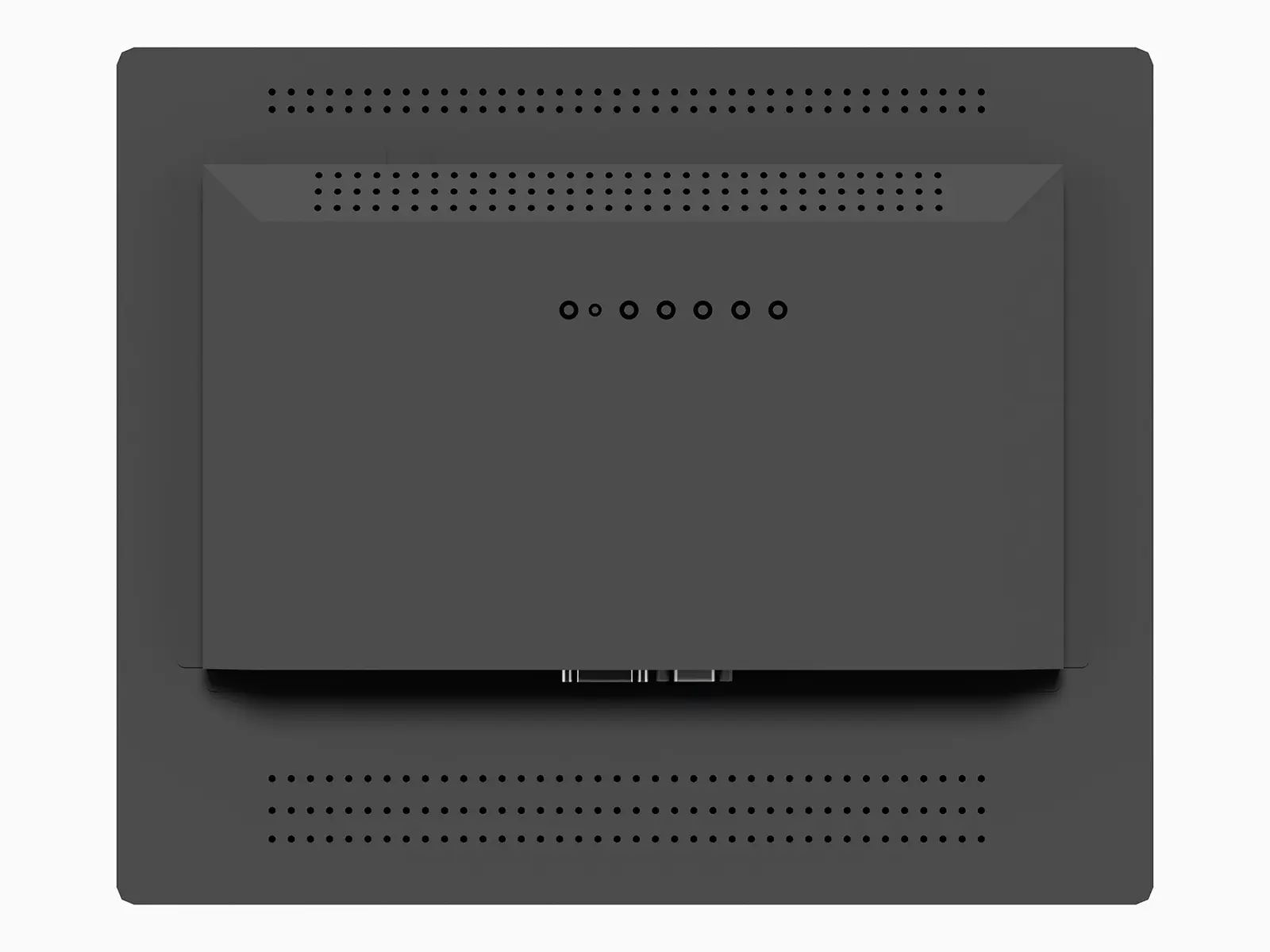

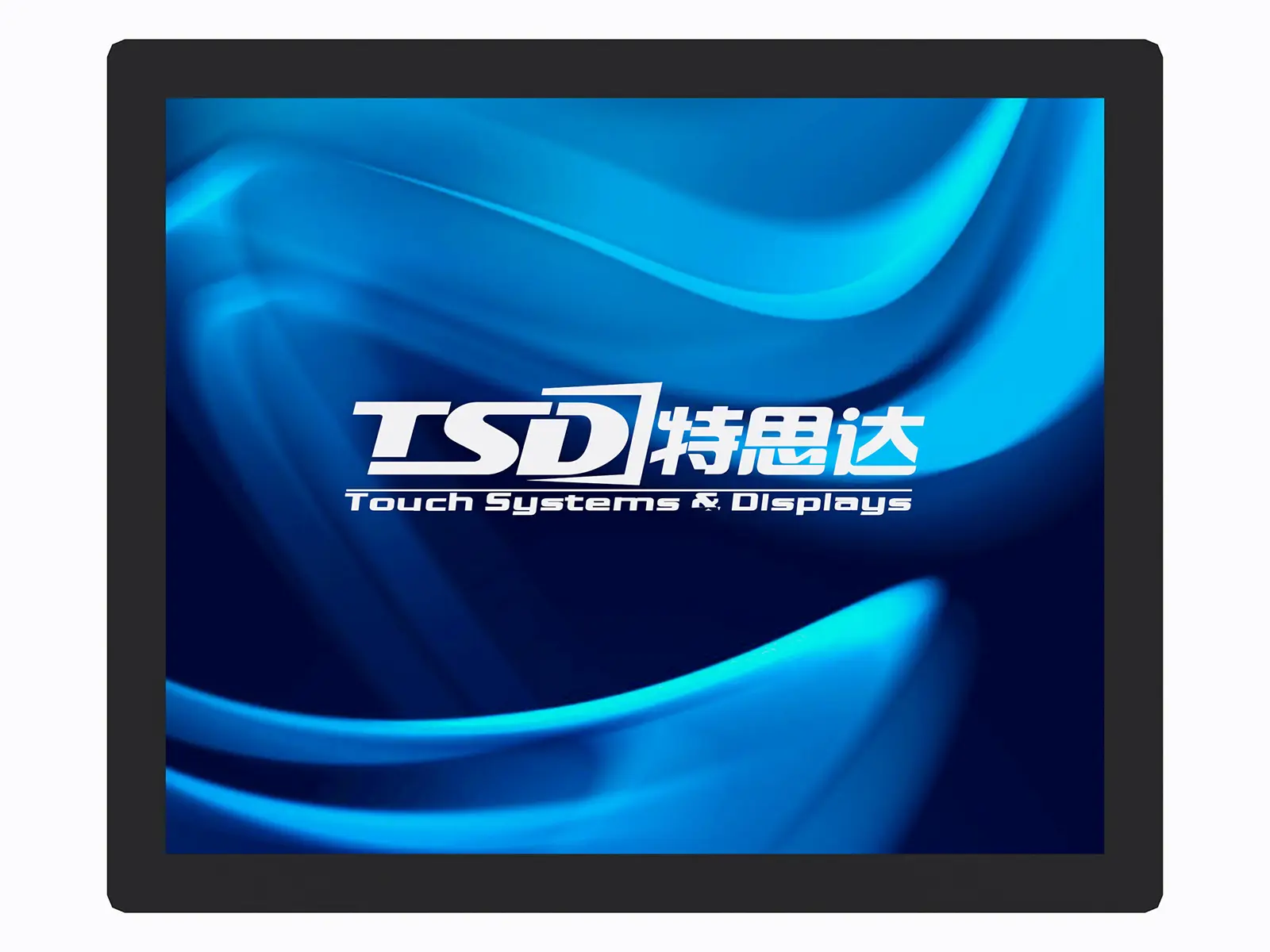

17" Open Frame PCAP Touchscreen Monitor
17.0'' Monitor Model：OTL170
When it comes to affordable, high-value touch solutions for OEM and system integration, TSD touch monitors are the top choice—and the 17.0-inch OTL170 monitor embodies this strength. It’s widely used in retail, self-service, gaming, and entertainment scenarios, seamlessly fitting into diverse business setups.
TSD Technology, established in 2006, is a leading touch solution provider in Kunshan, China. We offer a comprehensive product lineup: PCAP and SAW touch screens, open-frame touch monitors, desktop touch monitors, and all-in-one touch computers. Our core focus is creating products that are reliable, long-lasting, and cost-competitive to meet customer needs.
As a trusted Chinese touchscreen provider, we have seasoned electronic engineers and industry experts dedicated to leading the touch screen industry into a new information technology era. We also hold key certifications like ISO9001, CE, FCC, and RoHS—proof of our unwavering commitment to quality, which the OTL170 monitor fully delivers on.
Record Of Revisions
|
Version and Date |
Page |
Old Description |
New Description |
Remark |
|
A0 2025/06/11 |
ALL |
First Edition For Customer |
|

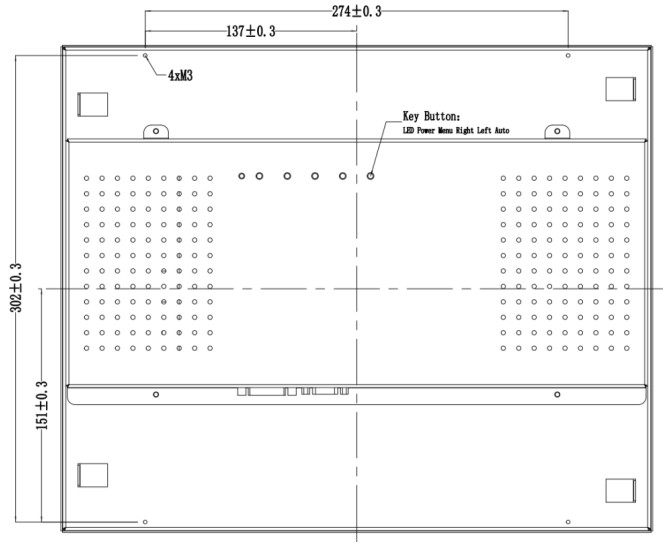

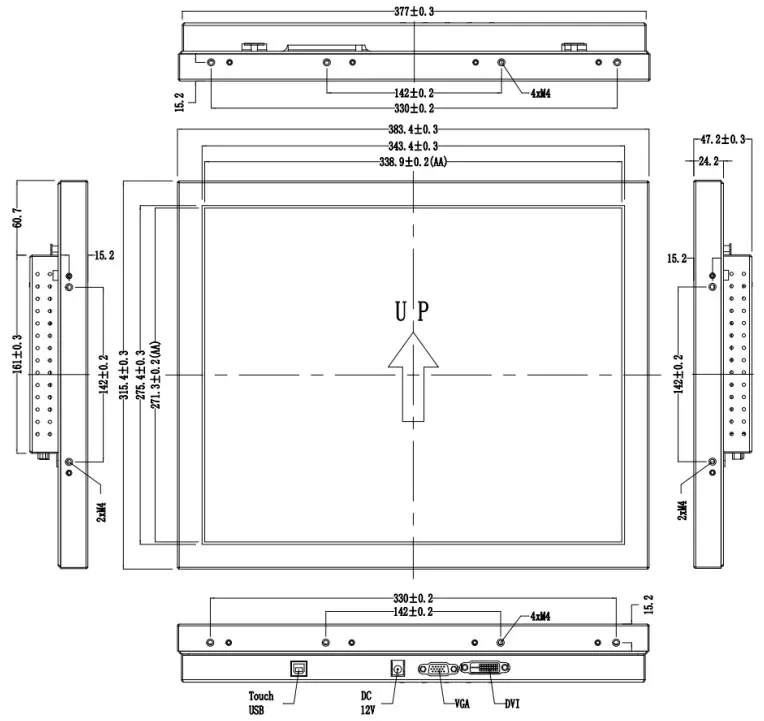

Product Drawing
Technical Parameters
|
Display specification |
|
|
Model |
OTL170 |
|
Display size |
4：3 |
|
Active area |
337.920 (H)mm x 270.336 (V) mm |
|
Native resolution |
1280 x 1024@60Hz |
|
Pixel pitch |
0.264(mm) x 0.264(mm) |
|
Colors |
16.7 M |
|
Brightness(typical) |
LED panel: 250 nits |
|
Display: 215 nits |
|
|
Contrast ratio(typical) |
1000:1 |
|
Response time(typical) |
5.0 ms |
|
Viewing angle(typical) |
R/L:85/85° (typ) U/D:80/80° (typ) |
|
Input interface |
VGA、DVI |
|
OSD |
Contrast, Brightness, Horizontal vertical image size and position, Color temperature,The language selection, RESET, Exit OSD. |
|
Touch Specifications |
|
|
Touch screen |
17 " PCAP |
|
Touch point |
10 points |
|
Touch accuracy |
2mm |
|
Minimum touch body |
Ø7mm |
|
Touch activation force |
10g |
|
Touch response time |
10ms (typ) |
|
IC |
ILITeK ILI2510 |
|
Material |
2mm strengthen glass |
|
Surface durability |
Mohs' 7H |
|
Light transmission |
86% |
|
Touch resolution |
4096* 4096 |
|
Input method |
Finger、Touch pen |
|
Expected life performance |
50,000,000 times |
|
Other Specifications |
|||
|
Power supply |
DC: 12V |
||
|
IP(touch screen with frame) |
IP 65 |
||
|
MTBF |
50,000h |
||
|
Dimensions |
Product: 383.4mm*315.4mm*47.2mm |
||
|
Package: 465.0mm*400.0mm*132.0mm |
|||
|
Weight |
Product: 4.0kg |
||
|
Package: 5.0kg |
|||
|
Temperature |
Operating: 0o C ~40o C |
||
|
Storage: -20o C ~ 60o C |
|||
|
Humidity |
Operationg: 20%~80% |
||
|
Storage: 10%~90% |
|||
|
Accessories(standard) |
Signal Cables |
Connector |
USBA-USBB |
|
Length |
1.8 m ± 30mm |
||
|
Color |
Gray white |
||
|
VGA Cord |
Type |
D-SUB 15Pin |
|
|
Length |
1.8 m ± 30mm |
||
|
Color |
Black |
||
|
Power Cord |
Type |
Chinese standard |
|
|
Length |
1.8 m ± 30mm |
||
|
Color |
Black |
||
|
Adapter |
Type |
12V4A PDN-48-48A |
|
|
Color |
Black |
||
