10.4 Inch Color TFT Open Frame Touch Display

Introducing our 10.4-inch Open Frame Touch Display, a rugged and versatile solution built for demanding industrial environments. Designed with superior industrial quality, this display is engineered for long-term reliability. A 1000-nit high-brightness option ensures perfect readability even in direct sunlight, while the front IP65 rating protects against dust and water. With optional optical bonding for enhanced durability and visual clarity, this monitor is the ideal choice for kiosks, control panels, and outdoor applications.

    Contact us
    product details

    10.4'' Monitor Model：OTL104

    TSD touch monitor are the most economic touch solutions which designed and developed for OEM and system intergration and widely used in retail, self- service, gaming and entertainment applications.

    Established in 2006,TSD technology is a leading touch solution provider in kun- shan, China. Products include PCAP and SAW touch screen,open frame touch monitor,desktop touch monitor and All-in-one touch computer.We concentrate on desig- ning and manufacturing reliable, durable and cost competitive products.

    As an outstanding china touchscreen rovider,we have experienced electronic engineers and echnical experts of the industry who are etermined to lead the touch screen industry into a new era of information technology.We have been granted ISO9001, CE, FCC, Rohs etc.certifications.

    15

    Record Of Revisions

    Version and Date

    Page

    Old Description

    New Description

    Remark

    A0 2025/03/19

    ALL

    First Edition For Customer

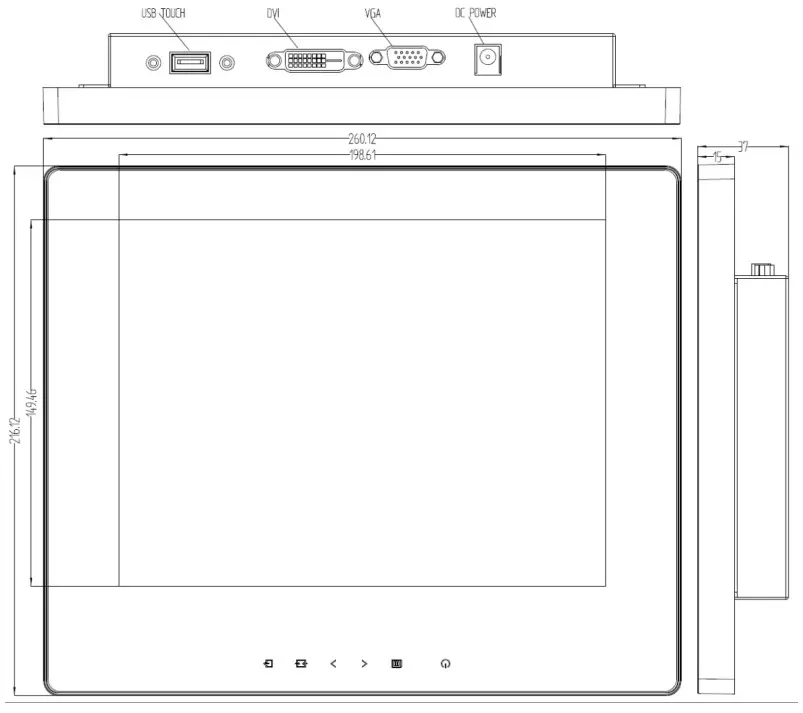

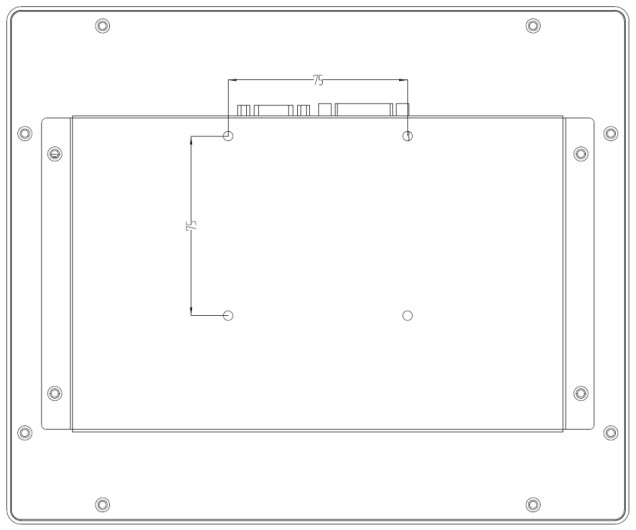

    Product Drawing

    Open-frame-10-4Open-frame-10-5

    Technical Parameters

    Display specification

    Model

    OTL104

    Display size

    4：3

    Active area

    196.608(W)mm x147.456 (H) mm

    Native resolution

    1024x768@60Hz

    Pixel pitch

    0.192(mm) x 0.192(mm)

    Colors

    262K

    Brightness(typical)

    LED panel: 350nits（min）；450 nits（typ)

    Display: 301nits(min);387 nits(typ)

    Contrast ratio(typical)

    900:1

    Response time(typical)

    20 ms

    Viewing angle(typical)

    R/L:89/89° (typ) U/D:89/89° (typ)

    Input interface

    VGA、DVI

    OSD

    Contrast, Brightness, Horizontal vertical image size and position, Color temperature,The language selection, RESET, Exit OSD.

    Touch Specifications

    Touch screen

    10.4 " PCAP

    Touch point

    10 points

    Touch accuracy

    2mm

    Minimum touch body

    Ø7mm

    Touch activation force

    10g

    Touch response time

    10ms (typ)

    IC

    ILITeK

    Material

    1.1mm strengthen glass

    Surface durability

    Mohs' 7H

    Light transmission

    86%

    Touch resolution

    4096* 4096

    Input method

    Finger、Touch pen

    Expected life performance

    50,000,000 times

    Other Specifications

    Power supply

    DC: 12V

    Dimensions

    Product: 260.12mm*216.12mm*37.0mm

    Package: 345.0mm*295.0mm*175.0mm

    Weight

    Product: 2.5kg

    Package: 3.0kg

    Temperature

    Operating: 0o C ~ 40o C

    Storage: -20o C ~ 60o C

    Humidity

    Operationg: 20%~80%

    Storage: 10%~90%

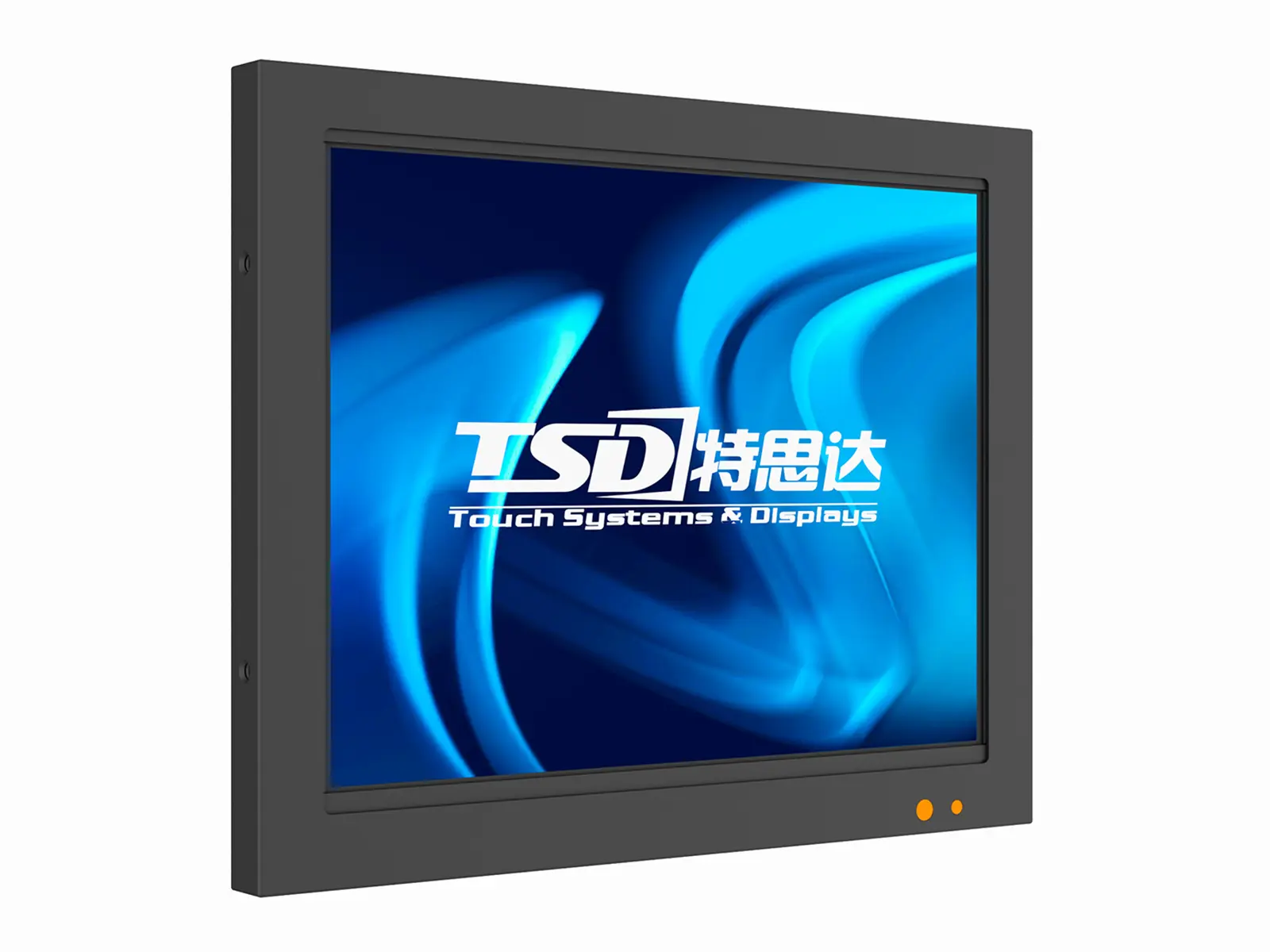

    Open-frame-10-2
    01

    A 10.4-inch Color TFT Open Frame Touch Display, especially with optional features like high brightness, optical bonding, and a rugged design, offers significant advantages and applications across various markets.

    Key Advantages for Outdoor and Demanding Environments:

    High Brightness (1000 nits) optional: This is a critical feature for outdoor or semi-outdoor applications where the display is exposed to direct sunlight or bright ambient light. A typical display (250-350 nits) would be washed out and unreadable. A 1000-nit display ensures that content remains vibrant, clear, and perfectly readable, enhancing usability and user experience.

    Optical Bonding optional: This advanced manufacturing process fills the air gap between the LCD panel and the protective cover glass with a special adhesive. The benefits are substantial for outdoor use:

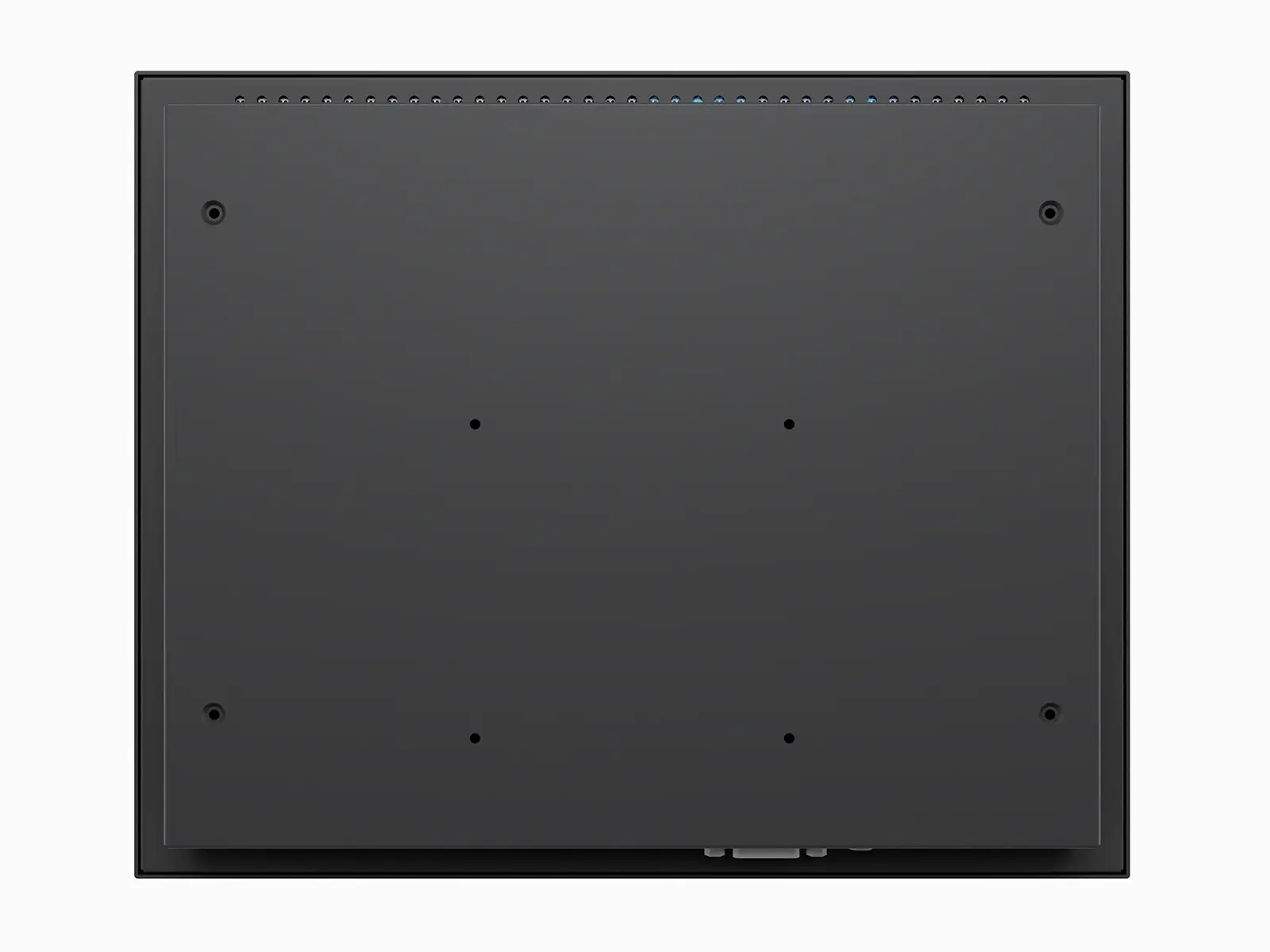

    Open-frame-10-3
    01

    Improved Sunlight Readability: It drastically reduces internal reflections and glare, making the display much easier to see in bright light.

    Enhanced Durability: It adds a layer of protection, making the display more resistant to scratches, moisture, and condensation, which is crucial for public and industrial settings.

    Dust and Debris Prevention: By eliminating the air gap, it prevents dust, dirt, or moisture from getting trapped inside, ensuring long-term performance and clarity.

    Front IP65 Rating: This design ensures the front of the display is sealed against dust and jets of water. This is essential for applications where the display might be exposed to rain, spills, or routine cleaning, guaranteeing its longevity and reliability.
